Frame description

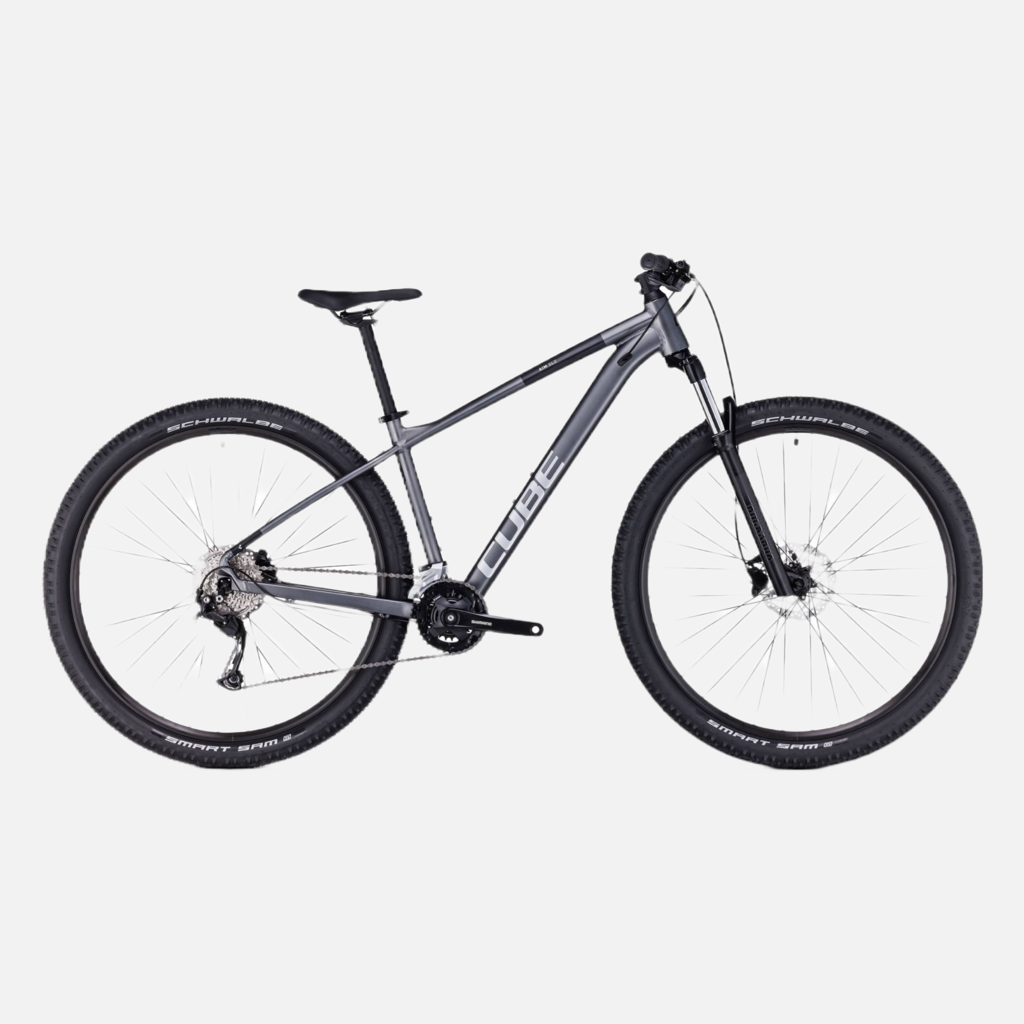

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for Acid mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
| |
|
| Frame description |
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork |
Rockshox Judy Silver TK Coil, 100mm, Lockout |
| Headset |
Cube FPH868, Semi-Integrated |
| Stem |
Cube Performance Stem Race, 31.8mm |
| Handlebar |
Cube Rise Trail Bar, 680mm |
| Handlebar tape/Grips |
Acid React |
| Seatpost |
Cube Performance Post, 27.2mm |
| Seatpost clamp |
Cube Varioclose, 31.8mm |
| Saddle |
Natural Fit Venec Lite |
| Rear derailleur |
Shimano RD-M3100-SGS, 9-Speed |
| Front derailleur |
Shimano FD-M2020, Top Swing, 31.8mm Clamp |
| Crankset |
Shimano FC-MT101, 36x22T |
| Cassette |
Shimano CS-HG201, 11-36T |
| Chain |
KMC X9 |
| Shifters |
Shimano SL-M2010-9R, Rapidfire-Plus |
| Front brake |
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Rear brake |
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Rims |
Cube ZX20, 32H, Disc |
| Front hub |
Shimano HB-TX505, QR, Centerlock |
| Rear hub |
Shimano FH-TX505, QR, Centerlock |
| Front tyre |
Schwalbe Smart Sam, Active, 2.25 |
| Pedals |
Acid PP MTB |
